Microflow T (Microliter-scale)

Microflow T (Microliter-scale)

         Speed up the formula screening and reduce R&D cost through small scale (25 – 250 μL), fast reaction (within 10 s), and constant ratio (flow rate ratio = 2:1)

         With tiny preparation scale (microliter), microfluidic synthesis system, Microflow T, can produce nanoparticles in few seconds, making it fast, convenient, economical, and efficient screen hundreds of formulations at the beginning of a research program. Meanwhile, the flow rate ratio has been optimized so  that user can focus more on formula itself.

・Small scale (25 – 250 μL) to reduce cost.

・Fast synthesis (within 10 s) to accelerate R&D.

・Constant ratio (2:1) to lower risks.

FlowTech T Cartridge

Besides the consistent path design with other FlowTech cartridges, FlowTech T uses new chamber for constant flow rate ratio.

・Broad applications: for the synthesis of LNP, liposome, polymer, and etc.

・Laminar flow to generate uniform nanoparticles.

・Less than 3 ms of mixing time.

Software (Microflow T)

The OS, also named Microflow T, possesses similar function and operation logic with Microflow S and M, so that users can get started quickly. The software is also optimized based on tiny synthesis scale, keeping basic functions and making the operation easier.

・Unlimited formula saving

・Fast data exportation

・Updated online

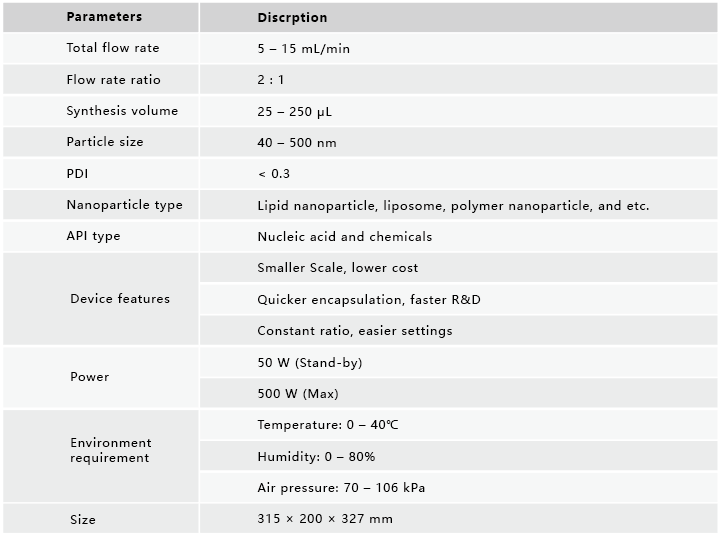

Parameters (Microflow T)

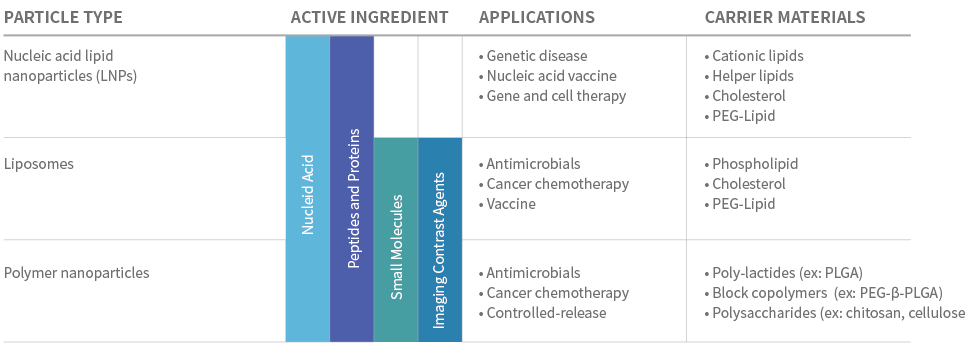

Microflow™ Applications
